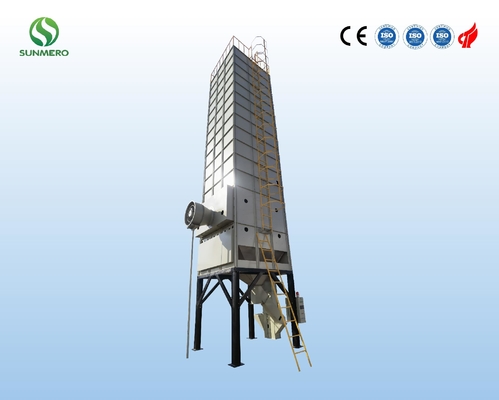

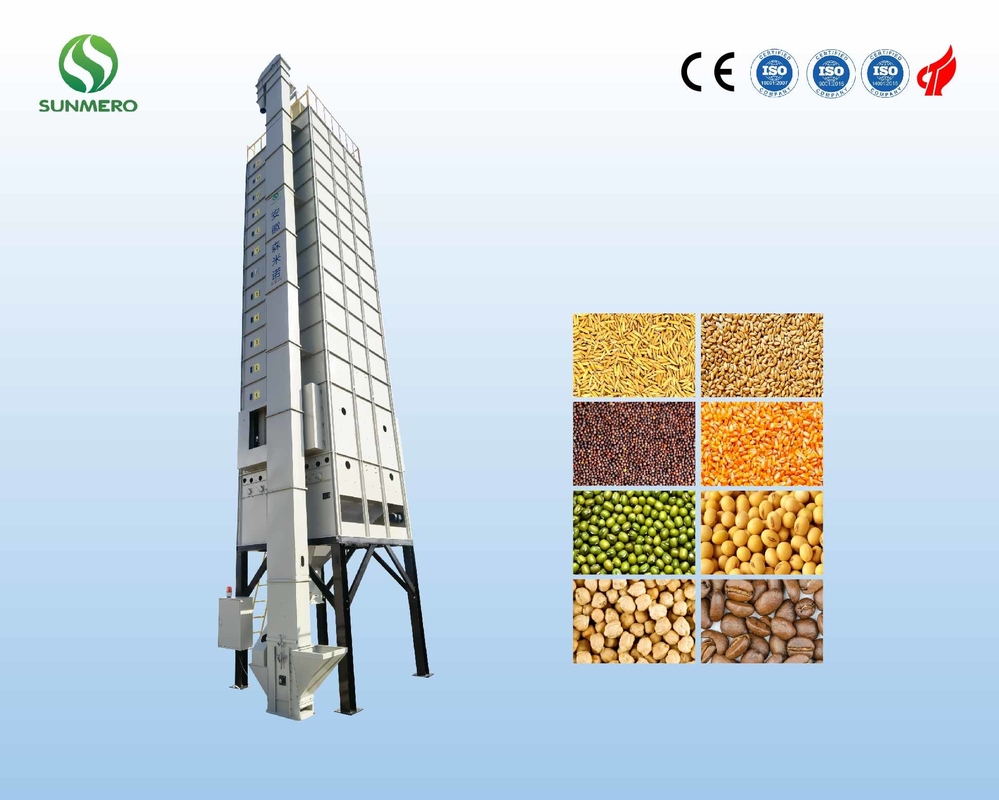

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons

  • Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons
  • Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons
  • Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons
Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons
Product Details:
Place of Origin: China
Brand Name: Sunmero
Certification: CE / ISO9001 / ISO18001 / ISO14001
Model Number: 5HXH-20C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1-2 HQs
Delivery Time: 30-45 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 300 sets per month
Contact Now
Detailed Product Description
Model: 5HXH-20C Capacity Per Batch: 20 Tons
Dimension(L*W*H): 2378*2375*12504mm Elevator Height: 13603mm
Net Weight: 5500kg Total Power: 8.47kg
Blower Motor: 5.5kW Drying Rate: 0.5%-1.2%
High Light:

multifunctional vertical grain dryer

,

20 Tons vertical grain dryer

,

20 Tons electric rice dryer

Re-circulating Batch Grain Dryer of 20 tons per batch for paddy rice drying plants



Drying Features:



Batch-type grain dryer is designed for high quality rice.



1. Advantages of batch grain dryers' lower body part



The lower body and the drying part of the paddy dryer machine cover are made of Masteel's high-strength plates, with excellent steel quality and high strength. The exterior is painted with a lacquer treatment, which is exquisite in appearance, corrosion-resistant and has a long service life.



2. Advantages of grain dryer machine's drying section



A. Transverse six trough drying section

The drying section adopts a horizontal six-slot structure. Compared with the traditional vertical four-slots, the drying layer is thinner, so that the grain is heated more evenly, and the drying efficiency is higher.



B. Horizontal eight-slot drying section

The drying section adopts the structure of eight horizontal grooves. Compared with the six horizontal grooves, the drying layer is thinner, so that the grain is heated more uniformly and higher efficiency.



3. Advantages of paddy grain dryer's electrical system



A. Moisture meter

The original imported moisture meter is used. This moisture meter of grain drying equipment adopts online resistance detection technology, the digital signal is not interfered, the accuracy is high, and the error can be guaranteed within 0.5%. This moisture meter can carry out one-key setting operation, which is convenient and quick.



B. Circuit control box

The circuit control box is divided into three parts: switch, control program, and electrical overload protector. The PLC control program is adopted, which can realize remote data transmission, the fault code can be converted into local language, and the operation is simple and convenient. The large-size touch screen cooperates with the traditional buttons, and the double insurance design ensures the smoothness and stability of the grain drying systems' operation.



C. Harness advantage

The wiring harness adopts aviation plug technology. The electrical control cabinet is easy to enter dust during long-term use, which will damage the internal electrical components and cause short-circuits. The aviation plug has good air-tightness to ensure the cleanliness in the control cabinet and prolong the service life of electrical components.



D. Centrifugal fan

The high-power centrifugal fan is adopted, and the air volume is large. Compared with the traditional axial flow fan, the air pressure and air volume are increased by 30%. The fan motor uses famous brand, with a power of 5.5kW, which greatly improves the drying efficiency.



E. Level meter

It adopts anti-rotation material level device, which is durable and high reliability.



4. The advantages of rice dryer's transmission system



A. Slope diversion structure

Machines cancel the upper and lower auger structure, adopt a slope diversion structure, and have a lower grain crushing rate.



B. Discharging wheel transmission

The outer part of the chain drive system of the lower body of the grain discharging wheel is made of transparent acrylic material, which is convenient for inspection and maintenance.



C. Bearing

Bearing adopts imported bearings from well-known brands (NSK, ASAHI), with larger specifications than ordinary bearings, smooth and stable operation, high overall strength and longer service life of rice grain dryer machine.



D. Total capacity

The large-scale dispersion plate of paddy rice dryer forces the rice to be evenly dispersed to the drying section, ensuring the drying quality while reducing the occurrence of bridging. The heat treatment process adopted is durable and highly reliable.







Main Technical Parameters

Model 5HXH-20C
Capacity per batch 20 tons
Dimension(L*W*H) 2378*2375*12504mm
Elevator Height 13603mm
Net Weight 5500kg
Total Power 8.47kW
Drying Rate 0.5%-1.2%

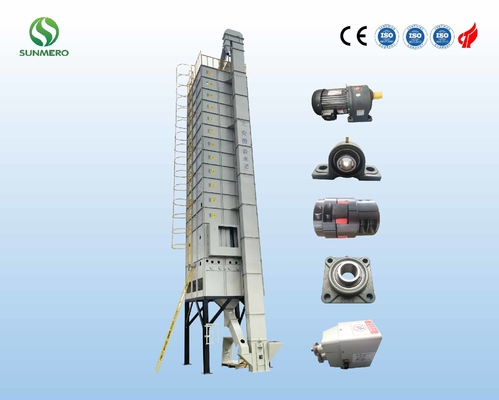

Key Components

22ton Batch Recirculating Rice Grain Dryer For Bangladesh Rice Mill Plant 0

22ton Batch Recirculating Rice Grain Dryer For Bangladesh Rice Mill Plant 122ton Batch Recirculating Rice Grain Dryer For Bangladesh Rice Mill Plant 2

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 3



Workshop Site



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 4Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 5

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 6Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 7Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 8



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 9



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 10





Certificate and Patents

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 11

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 12

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 13

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 14

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 15

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 16



Packing and Delivery

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 17Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 18



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 19Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 20



Onsite Cases

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 21

Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 22



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 23



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 24



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 25



Multifunctional Vertical Grain Dryer Electric Rice Dryer For Storage 20 Tons 26
