We dry your grains better !

|
| Place of Origin: | China |
| Brand Name: | Sunmero |
| Certification: | CE / ISO9001 / ISO18001 / ISO14001 |
| Model Number: | 5HXH-15C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1-2 HQs |
| Delivery Time: | 30-45 working days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 300 sets per month |
| Model: | 5HXH-15C | Capacity Per Batch: | 15 Tons |
|---|---|---|---|
| Dimension(L*W*H): | 2378*2375*11284mm | Elevator Height: | 12424mm |
| Net Weight: | 5200kg | Total Power: | 8.47kg |
| Blower Motor: | 5.5kW | Drying Rate: | 0.5%-1.2% |
| Highlight: | ISO14001 Rice Grain Dryer,15T Rice Grain Dryer,15T shivers grain drying system |
||

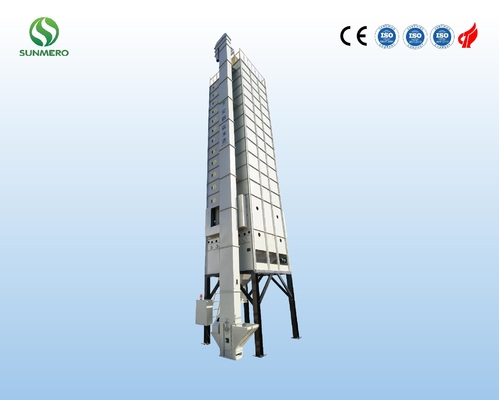

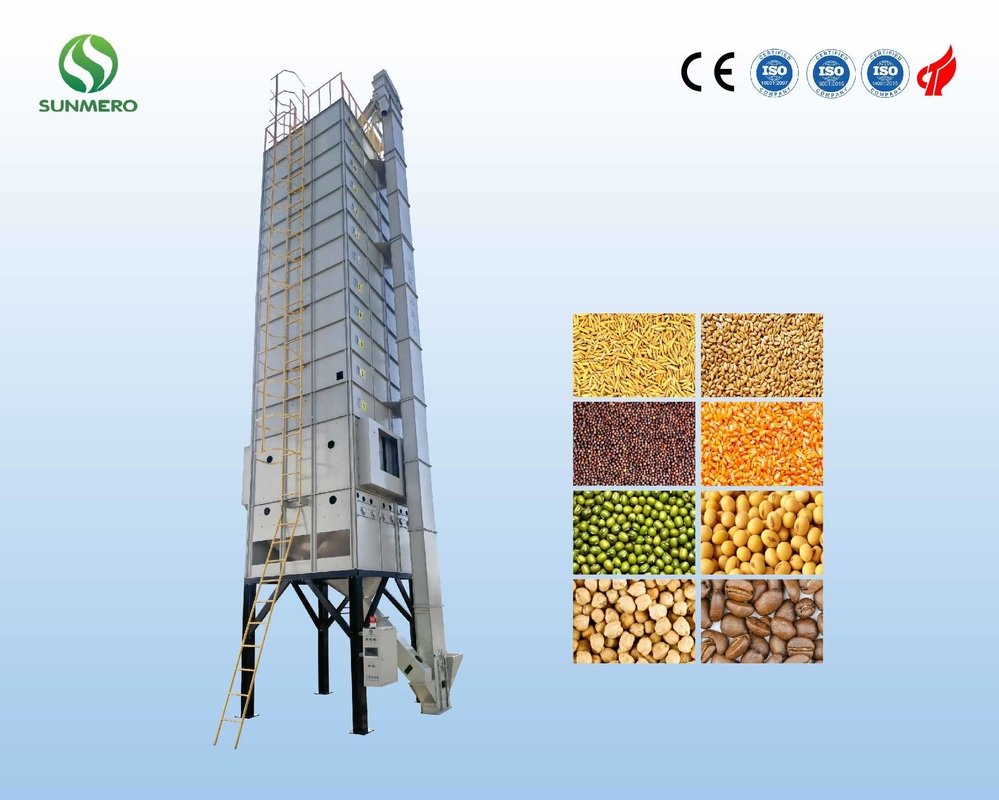

Re-circulating Batch Grain Dryer of 15 tons per batch for paddy rice drying plants
Drying Features:
Batch-type grain dryer is designed for high quality rice.
Sunmero grain dryers adopt the horizontal multi-slot drying method to increase the drying area, the drying speed will be faster, the quality of the dried grain is ensured;
Paddy rice dryer is equipped with an online moisture tester, which is used in conjunction with the control cabinet, with high accuracy, convenient maintenance and low cost;
The bearings of the transmission part of rice dryer machine are all imported ones, which ensure the stability of the equipment;
The operation panel of the grain drying equipment control cabinet has touch screen and button operation modes, which are convenient to operate and can adapt to different user groups;
The paddy dryer machine can be adapted to a variety of heating methods to avoid causing damage to the grain;
Paddy dryer adopts cold plates, which are thicker and have a long service life.
The structure of rice dryer is easy to disassemble and assemble, effectively and quickly solve the problem of any drying problems;
Grain drying systems equipped with temperature control system, temperature detection device, full grain alarm device, abnormal operation alarm and other installation devices to ensure the drying quality and safety of the equipment during use.
Main Technical Parameters
| Model | 5HXH-15C |
| Capacity per batch | 15 tons |
| Dimension(L*W*H) | 2378*2375*11284mm |
| Elevator Height | 12424mm |
| Net Weight | 5200kg |
| Total Power | 8.47kW |
| Drying Rate | 0.5%-1.2% |

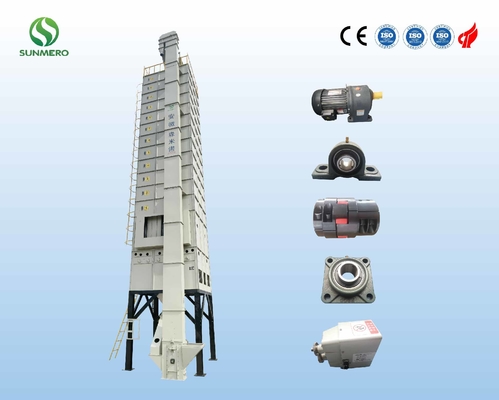

Key Components
Workshop Site
Certificate and Patents
Packing and Delivery
Onsite Cases
